The temperature data logger is a data logger waterproof , mainly used in the fields of medicine,vaccine,blood, food,flowers and laboratory,etc.

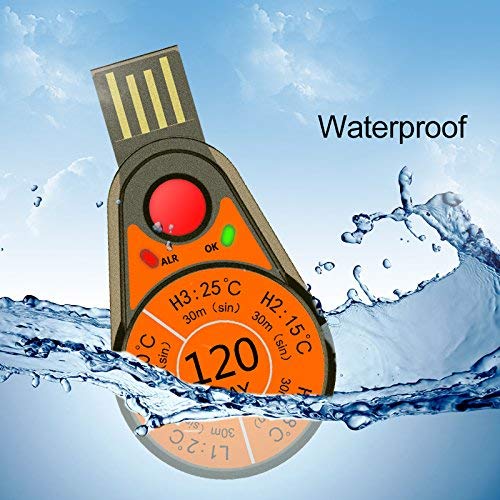

The shell is made of food grade colloid with injection molding technology and the protection grade is IP67.
It is especially suitable for the storage and transportation places of cold chain where high protection grade is required.
Users can view the data report after inserting the data logger to a computer, with no need to install data management software.
The data can still be read in case battery runs out.
Actual record capacity is different due to different record period.

Start delay:when the data logger is started, it delays for a period of time to start recording. The delay time can be customized.
Log Interval:10 seconds to 12 hours continuously set, The log interval is set according to the record period before the data logger leaves the factory.

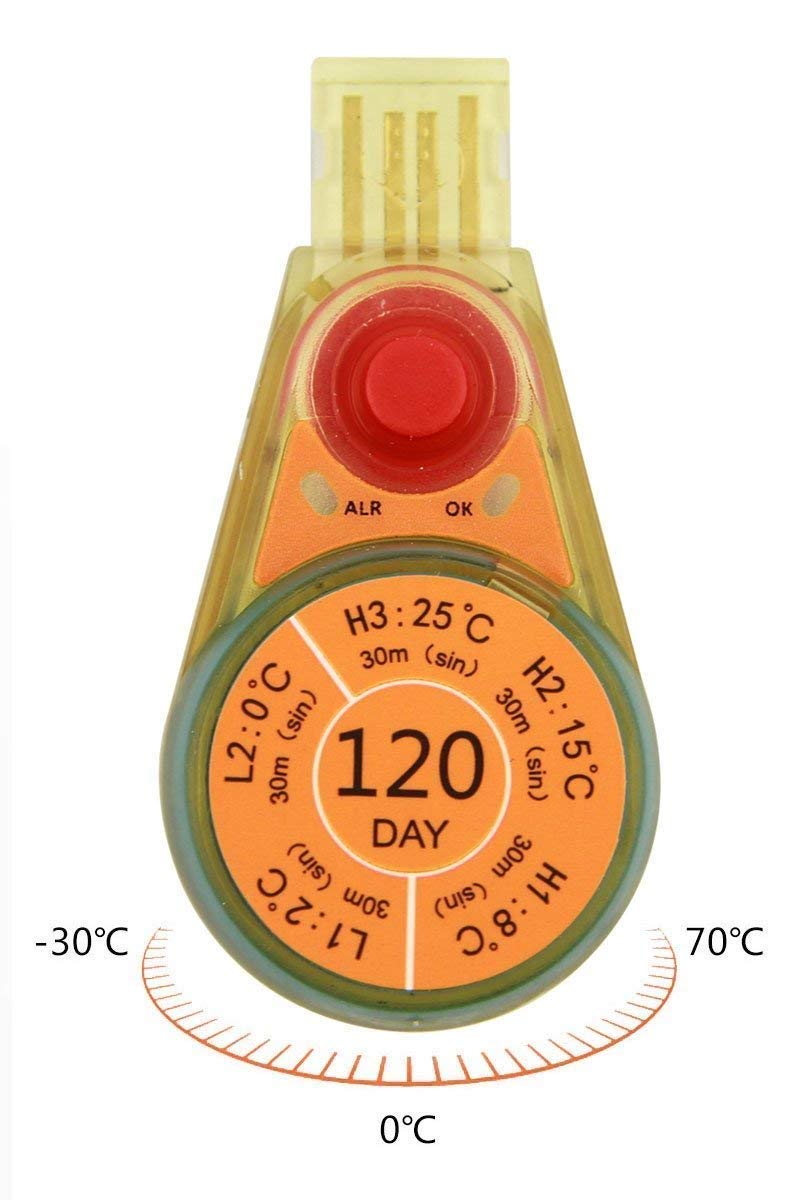

Alarm threshold:The alarm zone can be determined according to the alarm threshold.This data logger supports three upper temperature limits and two lower temperature limits at maximum.

Technical Parameters
All the parameters are reconfigured before the data logger leaves the factory.Some parameters can be customized based on your needs.
Storage temperature:-30℃～70℃
Alarm threshold Default (customizable)
Temperature measuring:-30℃～70℃
Resolution:0.1℃
Data interface:USE2.0
Temperature accuracy:0.5℃(-20℃～40℃ );0.1℃

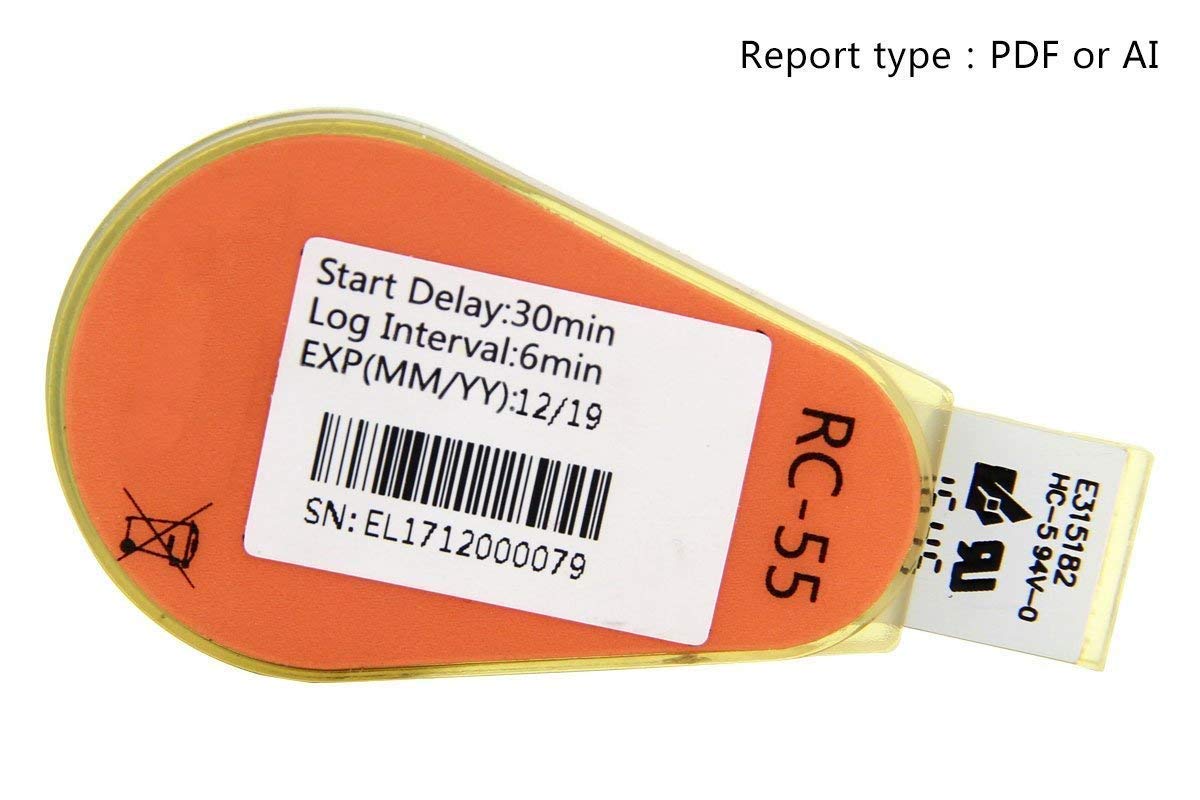

Report type：al format,which can be read by Adobe Reader

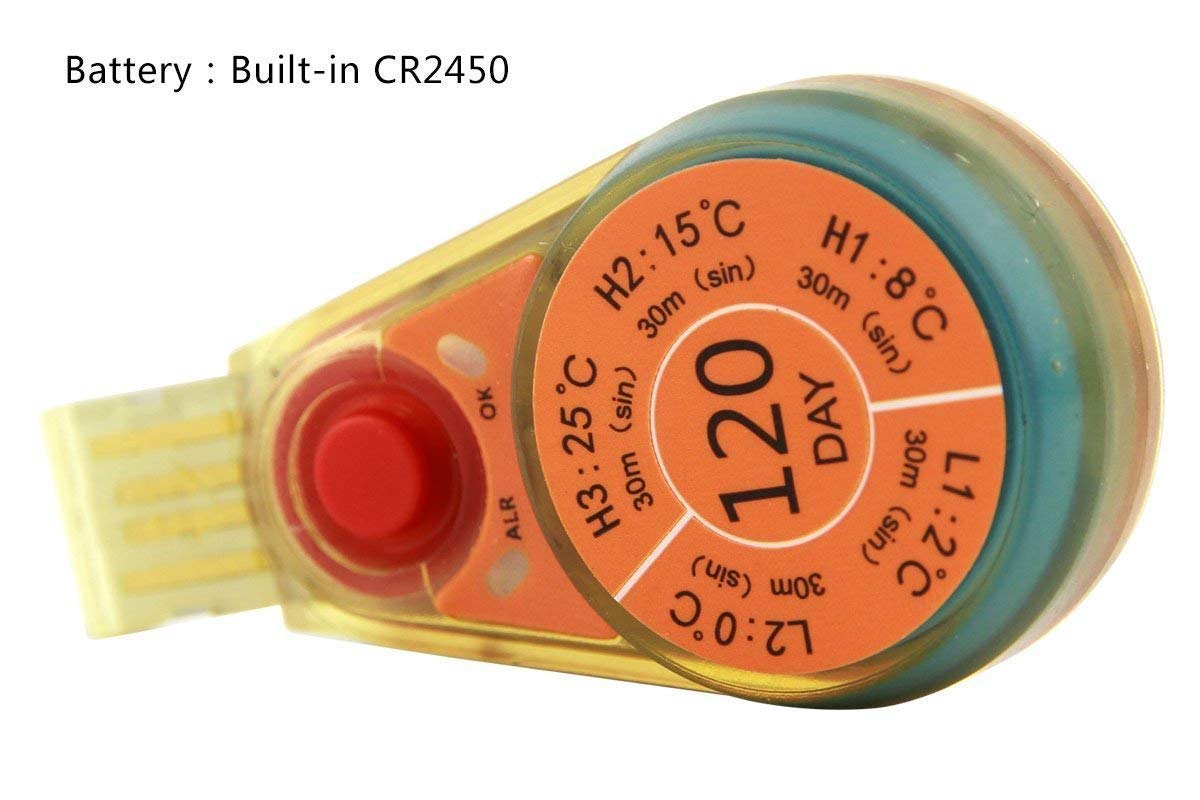

Battery :Built-in CR2450 wide temperature lithium battery

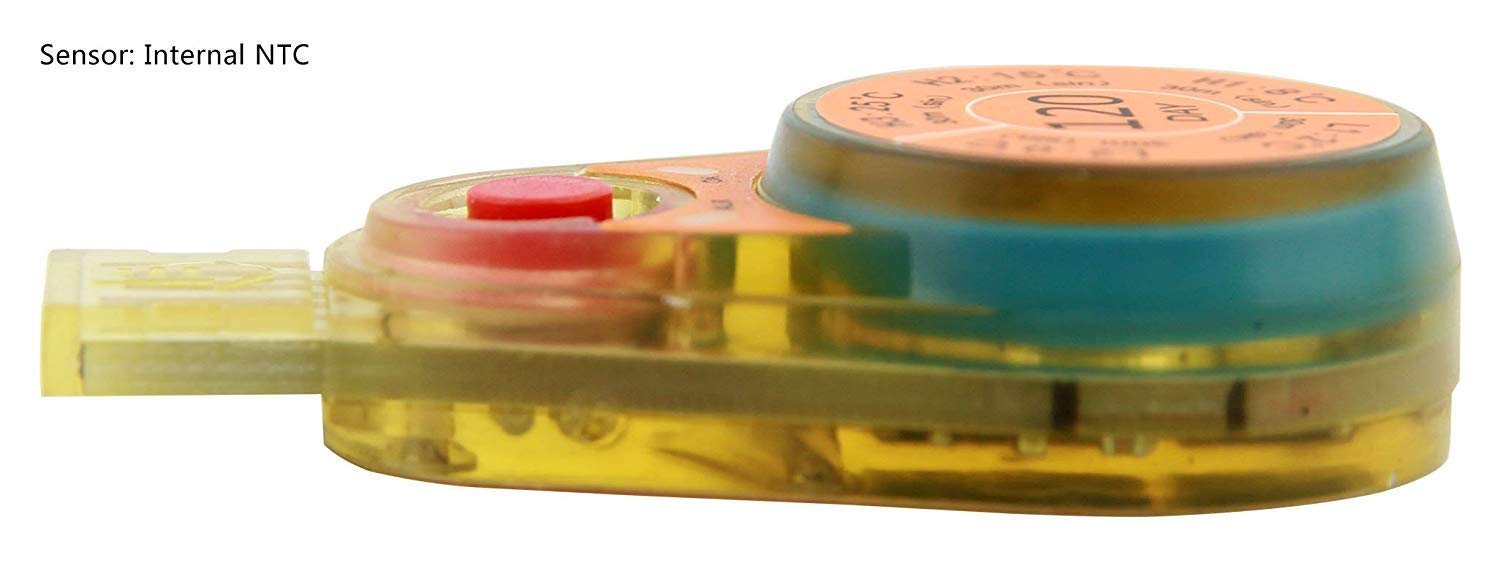

Sensor:Internal NTC
Battery life:2 years in total (store and use under normal temperature environment)
Record period:10,30,60,90,120,180,360 days(customizable)
Alarm type:Single or cumulative

Manufacturer	Elitech
Part number	RC-55 10P
Batteries	1 CR2 batteries required. (included)
Manufacturer reference	RC-55 10P
Power source type	Battery Powered
Item Package Quantity	1
Display style	Led
Special Features	Waterproof
Included components	Battery
Batteries included?	Yes
Batteries Required?	Yes
Battery Cell Type	Lithium Ion

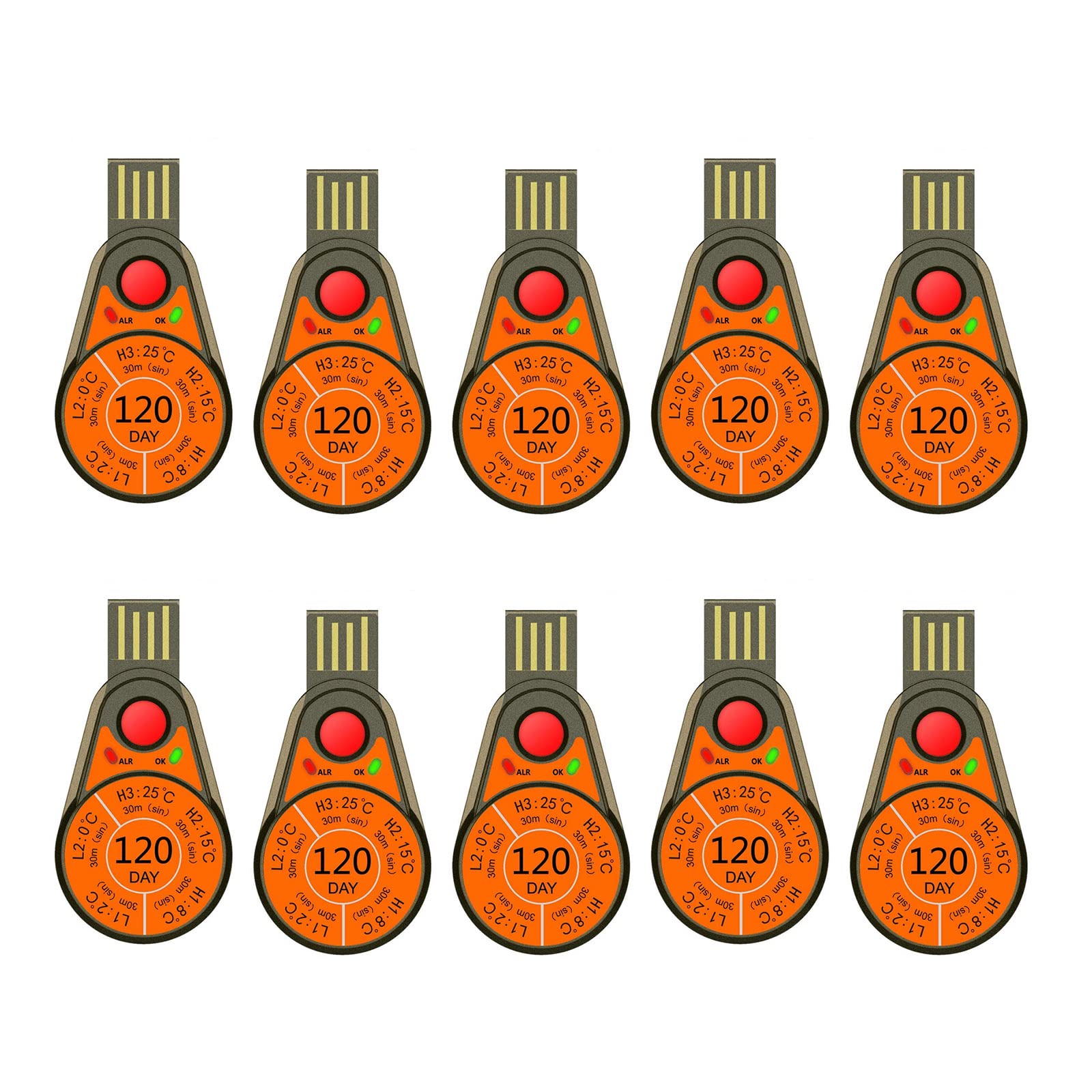

Elitech RC-55 Single Use Temperature Data Logger USB Connector IP67 Waterproof No Software Needed 32000 Points(10 Packs)
