Question 1

Why should I buy a isolated and not the non isolated , what are the benefits or purpose of the Isolated on a marine lifepo4 house battery.

Accepted Answer

Isolated prvents gavanic corrosion by seperating the shorepower from your house battery.  Use the non isolating for vehicals charging campers were they share a common ground.

Question 2

wats the diference between this n the non-isolated?

Accepted Answer

Hold on MrP.  This product is intended to be a battery charger for various battery types, including lithium.  The non-isolated Orion units are just voltage converters; they lack the multistage battery charging profiles necessary to precisely charge some types of batteries.   If an unprofiled (brute force) voltage converter is improperly applied to the wrong type battery, it can damage your battery.  That said, I do have a non-isolated Orion converter floating a LEAD ACID battery at 13.7 volts, and it's fine because lead acid is very forgiving.  But to charge my LITHIUM batteries, which are much more picky (and dangerous), I very much needed this type of precision and this type of charger.

So it's much more than a galvanic/ground isolation issue.   It's a very precise battery charger.

Question 3

I already have an isolated 12-24 and im getting another 12-24 non isolated from a friend. can i hook them up in parallel to get more amperes?

Accepted Answer

I don't know for absolute but generally if you connect two 3 Stage (Bulk, Absorption, Float mode) chargers in parallel, one will "see" the voltage of the other charger and confuse this with the battery's actual voltage. This results in one charger typically immediately going to the Float step and effectively shutting down. You could ask Victron directly if there is a work around for this but probably? not. If you have two or more pairs of batteries (say, 2 pairs of 12 volt batteries in series / parallel like I have), you could use a Bat 1 - Both - Bat 2 Heavy Battery Switch to isolate both batteries when charging (i.e. leave the switch in either Bat 1 or Bat 2 position (not in Both except when using instead of charging). That way, you could use each charger to independently charge a series pair. Hope you get my drift. Hope this helps.

Question 4

What guage wire to use for a 15-20 ft run with the 12/24 volt 15 amp charger?

Accepted Answer

AWG 8-10

ASIN	B07YMSJB7D
Amperage	15 Amps
Brand Name	Victron Energy
Colour	Blue
Country of Origin	USA
Current Rating	15 Amps
Customer Reviews	4.5 4.5 out of 5 stars (99)
Input Voltage	12 Volts (DC)
Item Dimensions D x W x H	8D x 13W x 18.6H Centimeters
Item Weight Unit of Measure	1.8 Kilograms
Manufacturer	Victron Energy
Manufacturer Part Number	ORI122436120
Model Number	NT-1126
Number of Items	1
Output Voltage	24 Volts (DC)

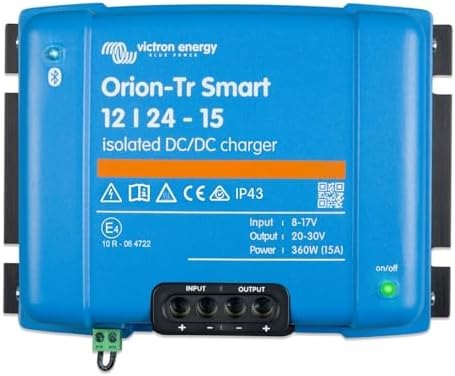

Victron Orion-Tr Smart 12/24-15A (360W) DC DC Converter
