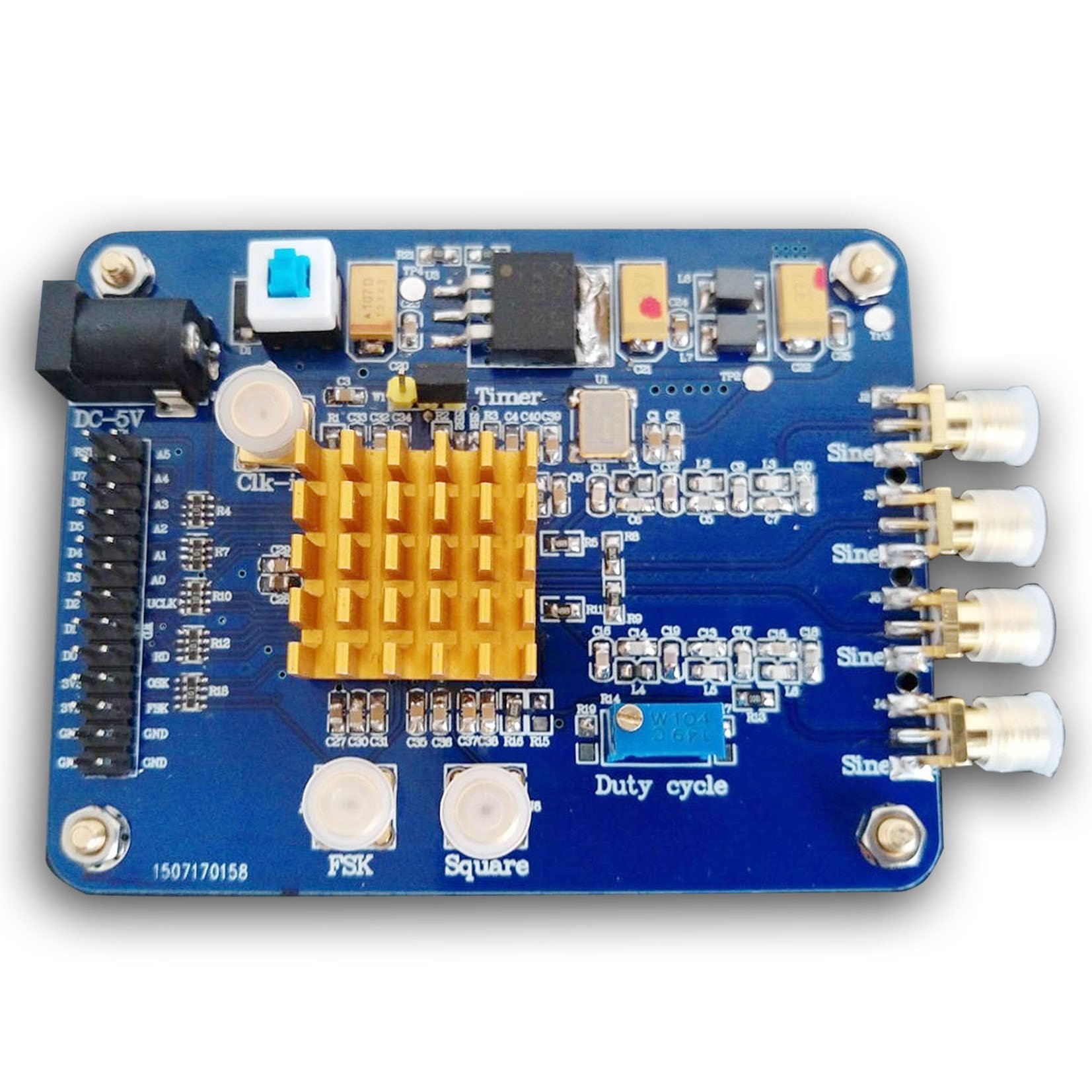

AD9854 High-speed DDS Signal Generator Module Development Board Evaluation Board

Description:

AD9854 digital synthesizer is a highly integrated device that uses advanced DDS technology, built two high-speed, high performance quadrature DAC, together form a digitally programmable I and Q synthesizer. When precision clock source as a reference, AD9854 generates highly stable frequency - phase, amplitude-programmable sine and cosine outputs can be used as communications, radar, and many other applications agile LO. Innovative high speed DDS core provides 48-bit frequency resolution (using the 300 MHz SYSCLK, the tuning resolution of 1 μHz). 17 can be maintained to ensure that the device has excellent spurious-free dynamic range (SFDR).

Chip Features:

300 MHz internal clock rate
FSK, BPSK, PSK, chirp, AM operation
two integrated 12-bit DAC (DAC)
ultra-high-speed comparators, rms jitter: 3 ps
outstanding dynamic performance: 80 dB SFDR (100 MHz ± 1 MHz AOUT)
two 48-bit programmable frequency register
two 14-bit programmable phase offset registers
12-bit programmable amplitude modulation and switching output shaped keying function
a single-pin FSK and BPSK data interfaces
providing PSK function through the input / output interface
linear or nonlinear FM chirp functions with single pin frequency hold function

Chip Applications:

a quadrature LO Frequency Agile
Programmable Clock Generator
radar and scanning systems FM chirp source
test and measurement equipment
Commercial and amateur RF exciter

Package included:

1 X AD9854 High-speed DDS Signal Generator Module Development Board Evaluation Board

Brand	Interlinklondon
Manufacturer reference	DDSM0009mike
Manufacturer	Interlinklondon
Series	Precision
Connectivity Type	fm chirp
Are Batteries Included	No
Guaranteed software updates until	unknown
