Desertcart purchases this item on your behalf and handles shipping, customs, and support to Greece.
๐ง Connect smarter, not harder โ the proโs choice for secure, speedy wiring!

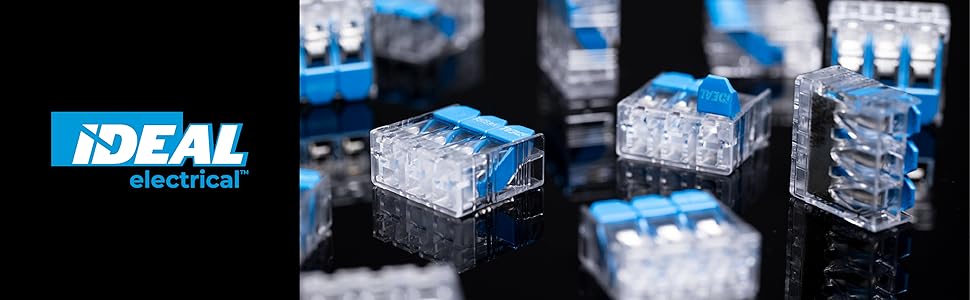

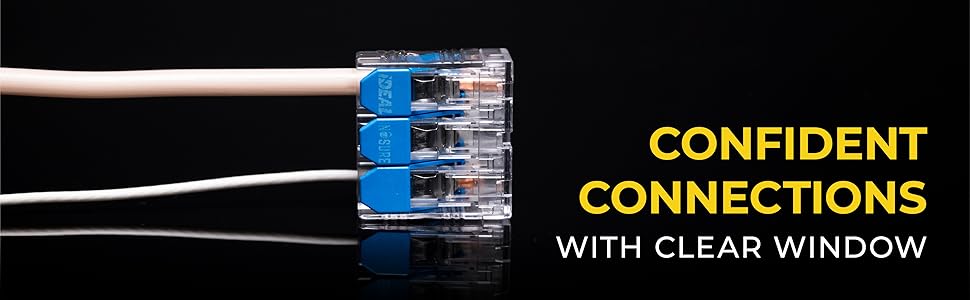

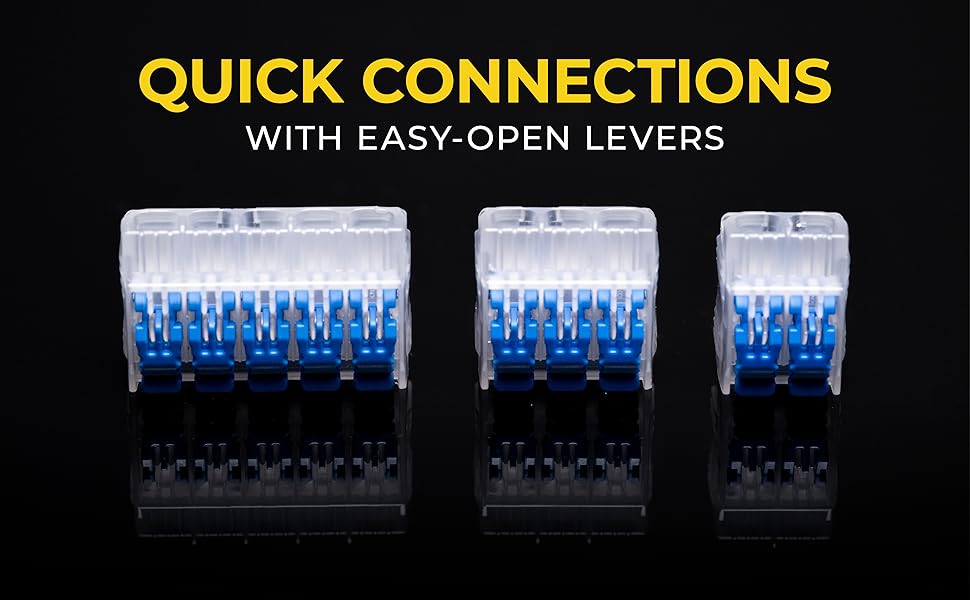

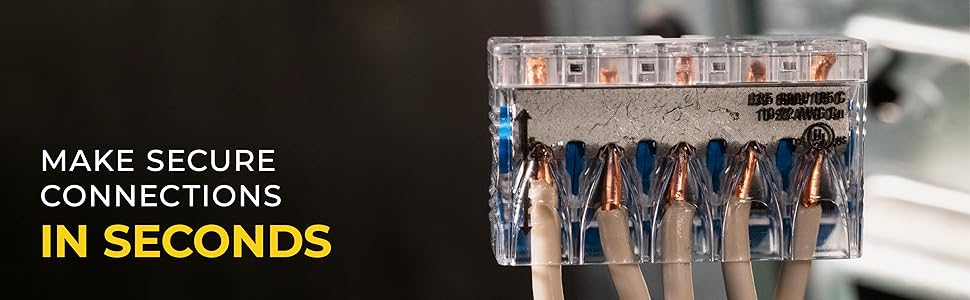

The Ideal Electrical In-Sure Lever Wire Connector is a compact, reusable 3-port connector designed for 12 to 24 AWG solid and stranded wires. Rated for up to 600 volts and 105ยฐC, it features a two-stage locking mechanism, a continuity check port, and a unique lever placement to prevent accidental openings. Its ridged polycarbonate housing ensures a secure grip and easy installation in tight junction boxes, making it a reliable and efficient solution for professional-grade electrical connections.









| ASIN | B0CK5518SQ |
| Best Sellers Rank | #107,442 in Tools & Home Improvement ( See Top 100 in Tools & Home Improvement ) #85 in Electrical Connectors |
| Brand Name | Ideal Industries |
| Color | Bag of 10 |
| Connector Gender | Female |
| Connector Type | Push-in |
| Contact Material | Metal |
| Customer Reviews | 4.8 out of 5 stars 74 Reviews |
| Included Components | Wire Connectors |
| Insulation Material | Polycarbonate |
| Insulation Material Type | Polycarbonate |
| Item Dimensions L x W x H | 0.77"L x 0.78"W x 0.41"H |
| Manufacturer | IDEAL |
| Material | Metal, Plastic |
| Material Type | Metal, Plastic |
| Maximum Voltage | 600 volts |
| Model | 30-01L23 |
| Number of Items | 10 |
| Part Number | 30-01L23 |
| Specification Met | UL |
| Temperature Rating | 105 C / 221 F |
| Terminal | Push-in |
| UPC | 783250110711 |
| Unit Count | 10 Count |
| Wire Diameter | 0.51 millimeters |
O**N
Quality Part & Easily Applied
These connectors are a unique and useful way to connect wires (especially by the novice DIY'r
J**G
Easy to use simplifies confections.
If you like Wagos these are great step up. They are just as easy to use as the Wagos but have the added feature of a lever retainer clip so a lever can not be easy bumped open. Size is similar to the Wago and has probe ports in the back. For the cost you cant go wrong with these.
J**C
So much better than Wire Nuts
I grew up using the old wire nuts that my dad did. These are the perfect size for 3 wires. The levers make them easy to use. there are very few issues with quality in them. Simply put they function well!
W**H
i like the way they close opposite of the wire
the work as for my applications
R**4
Nice!
I like these better than the Wego nuts, and that's saying something. I like the back facing levers. Great quality.
E**N
Great for DIY projects.
I used these on my off-grid solar powered shed (overhead lights and 3 outlets). For most DYI users, these will be much easier to use than wire nuts. The levers are hinged on the opposite side of the block, compared to competitors, basically eliminating the risk of accidentally lifting a lever when pushing the wires into the junction box or enclosure. These are particularly good for connecting solid and stranded wire. Be sure to check the viewing window on the back side to make sure your wires are fully inserted. Also make sure bare copper isnโt exposed at the connector.
C**R
Easy peasey
The connector allows adding an additional circuit without being tempted to put two wires on each lug of the existing wall plug. It is so easy to use. It grabs and holds each wire. It has a lever for each wire to released it from the connector.
P**G
They work well and lock down tight
Arrived quickly and works perfectly, some don't trust these but I've watched multiple videos online where they were tested far beyond their stated capacity and worked just fine
W**L
Not suited for stranded wire
Not good for stranded wire. Stranded wire pulls out with normal force. Solid wire holds firm.
