⛽ Power your fuel transfer with precision and durability—because downtime is not an option.

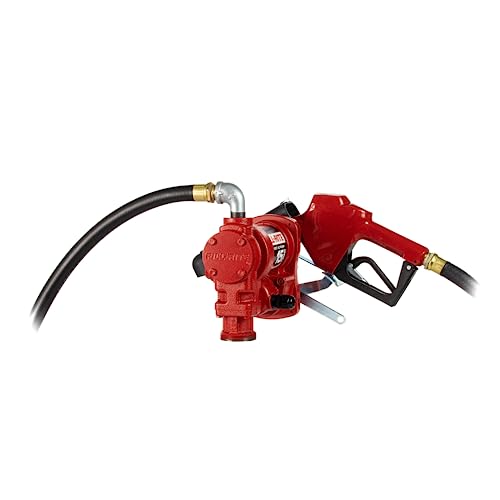

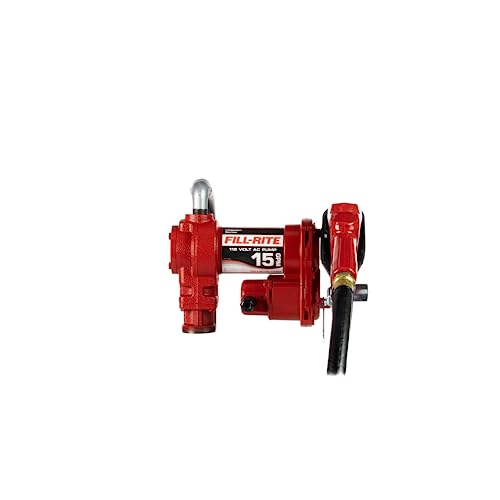

The FR610HA is a rugged 115V electric fuel transfer pump delivering 15 gallons per minute with rotary vane technology for consistent flow. Constructed from durable cast iron and featuring a 180° rotating junction box, it’s designed for easy installation and long-lasting performance. Equipped with thermal overload protection, it safely handles gasoline, diesel, kerosene, ethanol, methanol blends, and bio-diesel up to B20, making it the go-to pump for demanding stationary fuel transfer applications.
| ASIN | B00B4AUKHI |
| Auto Part Position | Front |
| Automotive Fit Type | Universal Fit |
| Best Sellers Rank | #37,213 in Automotive ( See Top 100 in Automotive ) #144 in Automotive Replacement Electric Fuel Pumps |
| Body Material | Cast Iron |
| Brand | Fill-Rite |
| Date First Available | May 22, 2013 |
| Fit Type | Universal Fit |
| Gas Type | diesel,ethanol,gasoline,kerosene,methanol |
| Global Trade Identification Number | 00089404223253 |
| Inlet Connection Size | 1 Inches |
| Inlet Connection Type | Female NPT Threads |
| Is Discontinued By Manufacturer | No |
| Item Weight | 0.16 ounces |
| Item dimensions L x W x H | 17.63 x 17.63 x 10.5 inches |
| Item model number | FR610HA |
| Manufacturer | Fill-Rite Company |
| Material | Cast Iron |
| Mounting Type | Bung Mount |
| Operation Mode | Electric |
| Outlet Connection Size | 3/4 Inches |
| Outlet Connection Type | FNPT |
| Product Dimensions | 17.63 x 17.63 x 10.5 inches |
| Product Grade | Performance Part |
| Specification Met | 30 Minute On/Off Duty Cycle |
| Style | Auto Nozzle (Red) |
| UPC | 089404223253 089404248362 |
| Vehicle Service Type | Truck |
F**S
Highly reliable, Fully recommended.
Highly reliable, Fully recommended.
G**E
Good quality
Works great
S**C
The reviews of this pump were better than those for some alternatives
This FR610GA pump is fitted to a stationary 250 gallon bulk tank of E10 gasoline for our vehicles and equipment. The automatic shutoff nozzle was an important feature to avoid overfilling car and equipment tanks. The reviews of this pump were better than those for some alternatives, It replaced a RotaBoy hand cranked pump circa 1950's. We elected to use the 120 Vac model instead of the 12 Vdc version because we didn't want to deal with yet another battery and we could reduce the chance of unauthorized use by placing a mechanical timer switch (Tork C530M) on its supply wire inside a locked garage. Installation was easy once a large pipe wrench enabled the removal of the old pump. It works as intended and is a great improvement over the old hand cranked pump.
A**.
Pump
It's reliable.
J**S
Good but pricy
Works great just pricy
D**N
Beats a hand pump
I bought this pump to replace a lever hand pump. That pump was flexing my plastic fuel tank and would eventually cause the tank fitting to break. It was also slow to use since I had to go easy and hold the top of the pump housing to lessen the flexing. This wouldn't have been a problem with a steel tank, I suppose. But I also had to stop and check the fuel level in the tractor when it got close to being full. I installed this electric pump easily. It took some extra time to install because I had to make a brace for the heavy, unsupported end of the pump to fasten it to my tank. That's where the hose hangs. I also had to make a hanger for the nozzle (nozzle and hose bought separately). I buried the underground feeder wire from the shop to the tank. I much prefer the 120V version to the 12V version since this is not a mobile tank. Now, filling my diesel tanks is quick and easy. The 120V wire is switched inside my shop, so fuel theft should not be a problem.
B**N
Timely delivery
The item came as described
L**K
Speed of delivery
Exactly as described. Arrived quickly.S
A**R
Very good qualuty
G**A
Everything you needed was in the box. And it pumps fuel quite quickly excellent
J**0
EXCELENTE BOMBA Y CALIDAD, LA RECOMIENDO MUCHO
R**I
excellent
C**Y
works mint. best price around
