PWM Motor Driver, PEMENOL DC 5V-24V 5A 150W Motor Speed Controller Adjustable Speed Regulator with Stepless Variable Knob Switch Signal Generator Driver Module

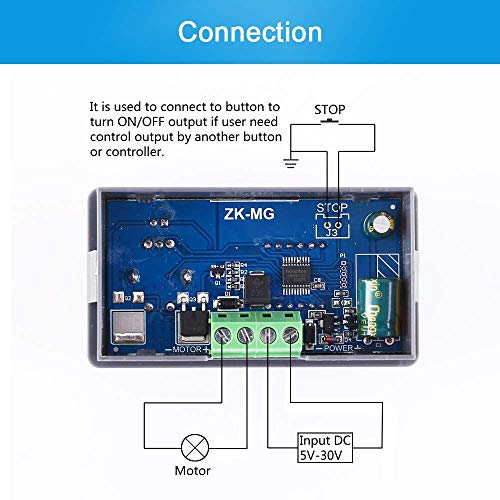

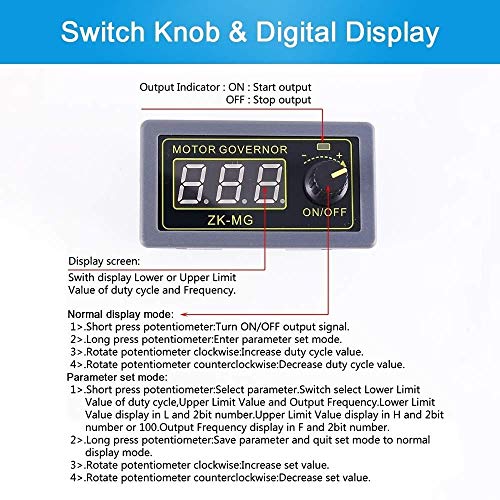

This motor controller is very easy to set up with its screw terminals and easy to use with its minimalist interface. The single rotary encoder changes the duty cycle, which is displayed on the LED display and short pressing it toggles the output which is indicated by the green led on top. Its easier compared to lots of push buttons. There is a solder terminal for an optional external on/off switch which can be connected to a momentary switch, shorting it seemed to toggle the output. I liked that it can be used out of the box without tweaking any settings, the frequency was set to 20KHz. Long pressing the rotary switch gets it into the settings mode, where the lo/hi duty cycle can be set along with the frequency. In the settings mode, short presses cycles between the 3 settings and a long press gets it out of settings; see the associated video. Once the duty cycle limits are set, turning the rotary switch doesn't get the duty cycle below or above the limits. The output PWM seemed very clean on the scope with no noticeable spikes or jitters. The soft start feature is good too, see the attached video how it slowly increases the duty cycle to the set value. I tried it with some 12v LED strips which worked great without any flickers and I used it with a 12V, 5A motor for a small drill press it worked down to 16% without any buzzing. There was no noticeable heating of the components after 10mins of use with the motor and an hour on a 50cm (1.5A) LED strip. The only thing I missed was a step adjustment setting, the fixed 1% increment takes a lot of turns to change through a wide range. Overall a great buy for controlling high load motors and fans.

he controller worked out of the box but there are three parameters you can set to make it work better. The first two parameters are high and low limits for duty cycle. The controller uses Pulse Width Modulation to vary the rpm of the motor. The controller doesn't change the voltage to the motor, just the amount of time the motor is receiving power. The default lower limit for duty cycle is 0 which means the motor never receives power. The default high limit is 100 which means the motor is receiving power 100% of the time. The motor I tested with doesn't run with a duty cycle below 30. The speed control knob on the controller doesn't have stops like normal potentiometers. It just continues to turn in either direction, raising or lowering the duty cycle. This means that while my motor stops at a duty cycle of 30 the controller can still reduce the duty cycle to 0. In order to start the motor again I'd have to turn the knob until it hits 30. With setting the lower limit to 30 the controller never goes below 30 no matter how much I turn the knob and it starts right away when I increase the duty cycle. The controller seems to be well constructed. The case is plastic but sturdy enough. The circuit board looks clean and well made and the solder joints clean. There is a place on the board to solder in a stop switch. After adding a switch it works as expected. When open the motor is allowed to run, closing the switch stops the motor. There is a slight delay (<1sec) before the motor resumes after opening the switch. There is a diode on the board to prevent damage if you hook power up backwards. Tech support was responsive when I had questions. Email was answered quickly, usually within a day.

I used it to control power from an 18v battery into a small motor. The worked well for maybe 20 minutes of use over a 3 week period then died. The screen flickers on then off after hooking up power and will not work. The battery and motor leads work perfectly - the controller is broken. It is a really good looking paperweight. Would not buy again.

SxS Speed control module. Had to return one and get another. Would not turn on after install. Returned and got another, worked great. Only reason I am giving the 4 star

works great

[9/29/2020 My mistake, accidentally posted to the wrong item several days ago] Just received the PEMENOL Motor Speed Controller. Hooked it up to a 30V 10 A DC power supply to check it out. Powered up fine when I got the power supply hooked up. The LED display is easy to read. The unit output is switched by the control knob by pushing it in. There's an LED above the knob to indicate on or off. The knob has smooth indents as you turn it, indicating the PW percentage on the LED display. It goes from 0 to 100. Don't know what the PWM frequency is. I didn't hook it up to my oscilloscope. I ultimately wanted to use the controller for a 24V gear motor, but I tried it on several other DC motors first. I tried a regular 6V DC motor it was able to control the motor very smoothly up to 100% modulation, except at really low pulse widths. Probably just too short of a voltage on time for DC motor dynamics, not a problem with the controller itself. Next I hooked up my 24V DC gear motor that runs nominally at 1000 rpm and 24VDC. The motor controller was able to again control the speed smoothly from about 15 to 100% modulation. Looks like it will work great for adding speed control between a fixed DC power supply and a lot of DC motors. Very useful and easy to connect.

I purchased this to control speed of my blower motor in my 80 Corolla in place of having the factory hvac controller and a blower motor resistor. Worked good for a few days but eventually caught fire from the amount of amps the blower motor pulled. Take the 5 amp rating seriously and it would probably make a pretty decent controller. Being that my Corolla is 45 years old there’s no information on what kind of amps the blower motor would pull. I thought 5amps would be close enough and it was not. I ordered another one rated for 30 amps so we will see how that goes.

لم يشتغل معاي ويوجد تلامس كهرباء داخلي وغير صالح تماما والمنتج لا تستطيع ارجاعه

Der Artikel wurde beschädigt geliefert!

Der Drehzahlregler arbeitet bei mir einwandfrei. Die Einstellung mittels Drehknopf mit Rasterung geht präziese. Ich steuere damit einen Moror mit 12Volt und ca.35 Watt.

Hat bei 146W den geist auf gegeben! Leider stimmt die angabe 150W nicht ganz
